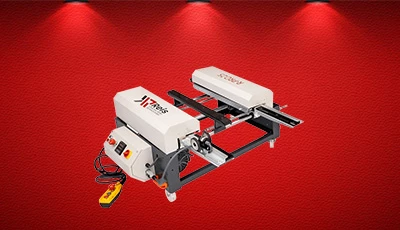

We produce the “R-PRO 25” Standing Seam Metal Roof Machine with the highest precision on the latest technology CNC processing machines.

With the user-friendly, strong, durable and robust “R-PRO 25” Standing Seam Profiling Machine, you can perform your standing seam applications in a quality-oriented manner.

As REIS STANDING SEAM TECHNOLOGIES; we always support our customers with spare parts on stock, from production to assambly, from sales to technical service.

MAXIMUM MOBILITY AT LOW COST

There is no need for large, difficult to carry and costly standing seam roll forming machines, when there is a R-PRO 25 standing seam machine.

With our portable standing seam machine, high precision standing seam panel production is possible without any length limit.

EQUIPMENTS

25 mm high seam panels are produced in a single pass from coils or sheets.	“R-PRO25” Standing Seam roof machine consists of 4 parts. It can be disassembled and installed in a short period of time, if necessary.

Standing seam panels are produced in high quality, thanks to the use of 7 sets of optimized roll forming roller designs.	“R-PRO25” Standing seam machine is suitable for all hard-to-reach jobsites and finds a place in the smallest workshops.

“R-PRO25” Standing seam roll former can be easily transported by all kinds of panel vans and station wagons.	Quite light, weighs only 190 kgs. Standing seam machine that can be easily carried with 4 wheels.

Detechable infeed arms	Reverse function and emergency stop

Material fix, support base	Easy working around the machine thanks to the remote control with the extension cable

Special digital control unit for convenient entry of lengths and quantities	Making 25 mm wide – 1,1 mm deep longitudinal strip marks on the panel with optional ribbing attachment device

Waste-free cutting from the material length with the optional cutting device at the exit of the standing seam machine.	Production of the standing seam panels from conical sheets in two operations. The smallest axial dimension is 80 mm with single-sided standing seam production.

With the easy rotation of the crank, material width adjustment can be made quickly to the desired size within the range of 250 – 700 mm	Cutting in one operation at the machine exit with guillotine shear

QUALITY and TRUST – REIS STANDING SEAM TECHNOLIGIES

Every manufactured “R-PRO 25” standing seam machine goes through delicate tests
Easy maintenance
CE Certificate
EU Attestation of Compliance Certificate
2 years of warranty
Strong management. Loyal, highly trained team.

TECHNICAL FEATURES

Operating Voltage	220 V / 50 Hz / 1 ph.
Drive Power	1 x 1.1 kw
Operating Speed	9 m/min
Forming Stages	7 stations
Shortest Panel Length	500 mm
Infeed Width	250 – 700 mm
Axial Dimension	170 mm – 620 mm (depending on material)
Processable Metals	Titanium Zinc up to 0,80 mm Copper up to 0,80 mm Aluminium up to 0,80 mm Sheet Steel up to 0,70 mm Stainless Steel up to 0,50 mm
Dimensions (LxWxH)	900 mm x 1200 mm x 585 mm (wheeled)
Weight	190 kgs
